● Built-in strap for easy handing
● 11 ranges in 5 functions
● Data hold to capture measurements
● AC current measurement up to 500A
● AC voltage measurement up to 600V
● DC voltage measurement up to 60V
● Resistance measurement up to 200KΩ
● Temperature measurement up to 150℃ /302°F
● Fuse: F500mA/250V
● Accessories included: 1.5V battery, test leads, English manual, blister card

SPECIFICATIONS
Jaw opening 40mm
AC voltage 150/300/600V (±4% f.s)
DC voltage 60V (±4% f.s)
AC current 10/50/100/250/500A (±4% f.s)
Resistance 2k/200kΩ (±4% of full arc)
Temperature -20~150℃ (0~302°F) (±5% f.s)
Operating temperature 0~40℃ (32~104°F) at RH<80%
Dimensions 198x80x36mm
Weight Approx. 320g included battery

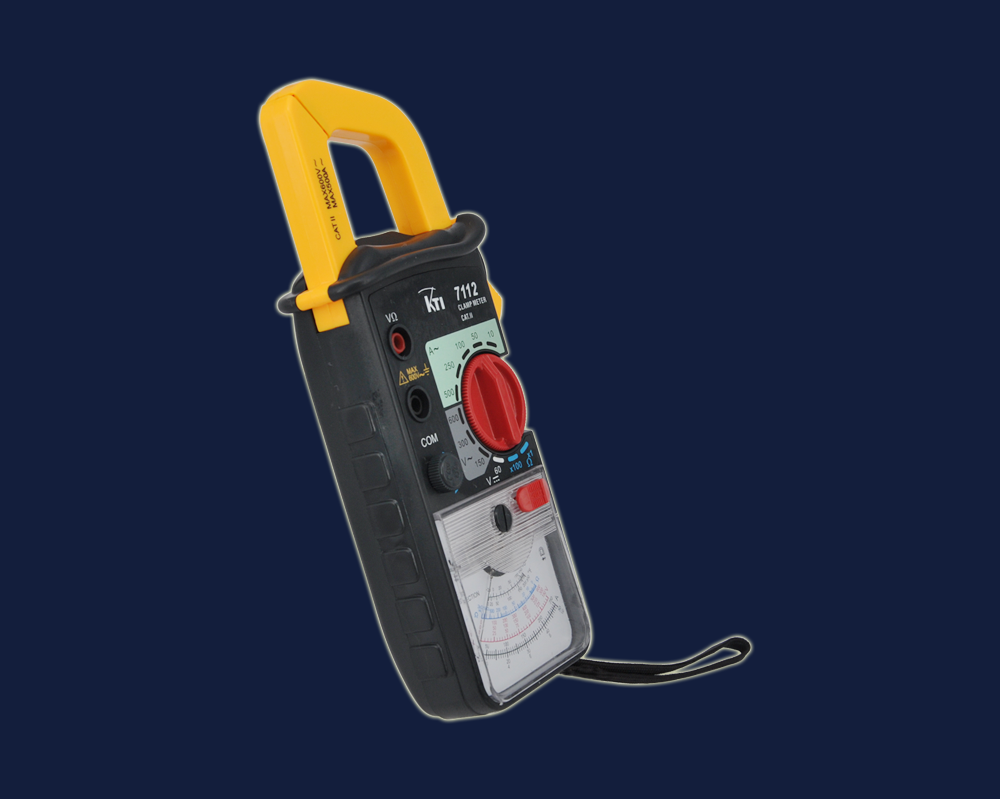

The analog clamp meter senses the current by conductor and through internal conversion the meter head indicates the reading.
In the measurement,  only by clamping a single wire in the circuit being measured will get the current.When holding the wire, in order to minimize the displacement error always place the conductor at the center of the clamping head.

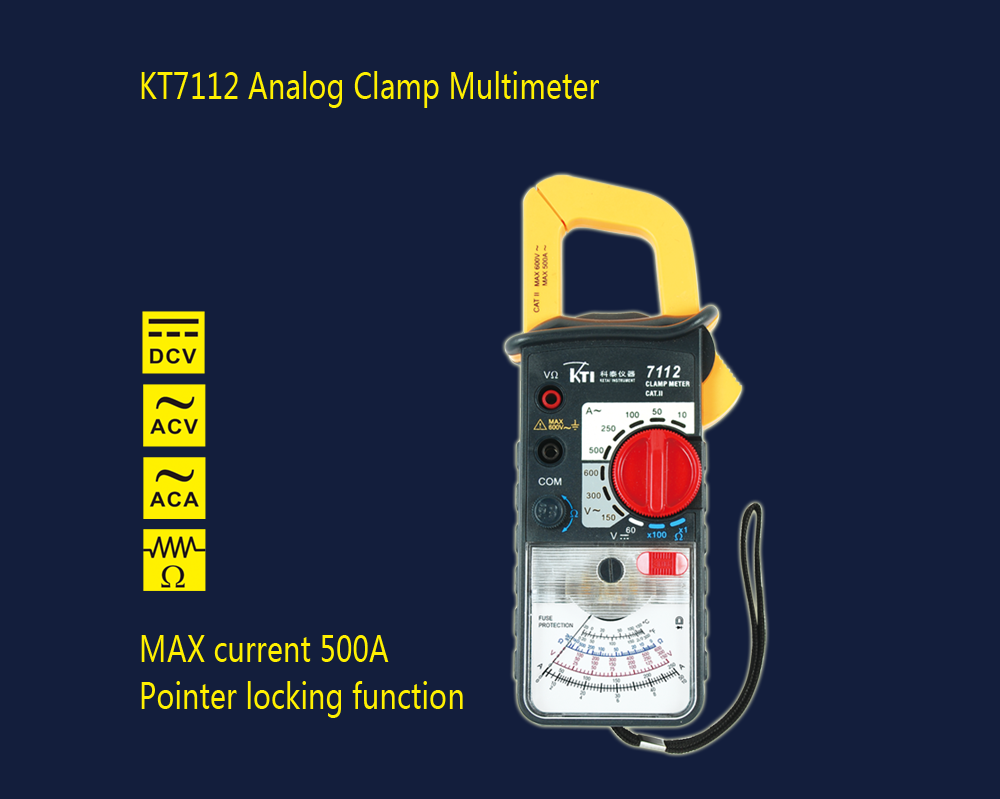

The KT7112 analog clamp meter features the lock pin function, which can also be considered as "hold" function. In some measurements, the reading of the pointer cannot be seen directly,in such cases, the lock pin can be pushed to lock the pointer and hold the reading after the measurement is completed, release the lock pin to return to normal state.

User should be sure of understanding the full content of the user manual before using.
Always remember: make sure the range is in the right position in the first place, then check the test leads.
Read the SAFETY CAUTION,  Maintainance and repair in the user manual.
