● Newest-style designed with unique Backlight function
● Highly sensitive and accurate multimeter in a handy compact housing
● 20 ranges in 6 functions
● AC/DC voltage measurement up to 1000V
● DC current measurement up to 10A
● Resistance measurement up to 20MΩ
● Audible continuity & diode tests
● Transistor polarity PNP/ NPN judgement
● Input impedence: 20KΩ/ VDC,9KΩ/ VAC

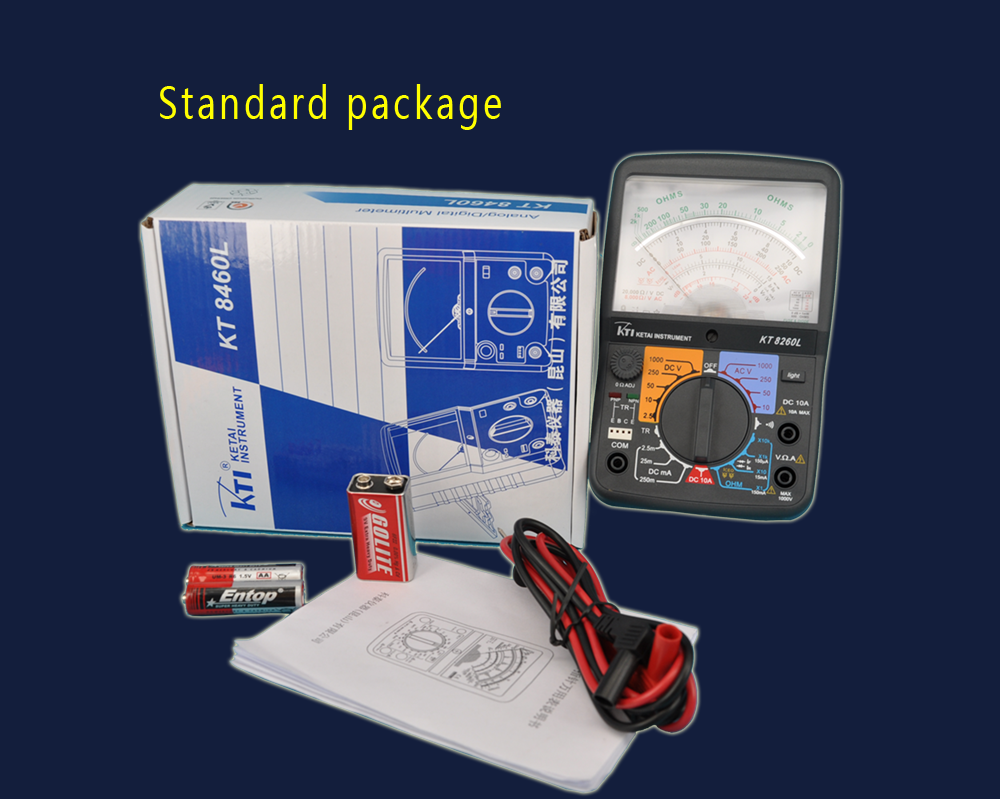

● Accessories included: 1.5V & 9V battery, test leads, English manual, gift box

SPECIFICATIONS
DC Voltage 2.5/10/50/250/1000V (±3.0% f.s )
AC Voltage 10/50/250/1000V (±4.0% f.s )
DC Current 2.5m/25m/250m/10A (±3.0% f.s )
Resistance 2K/20K/200K/2M/20MΩ (±3.0% of full arc)
dB measurement: -10~62 (0dB 1mW/600Ω)
Operating temperature 0~40℃ (32~104oF) at RH<80%
Dimensions 158x105x41mm
Weight Approx. 370g included battery
Measurement Category EN61010-1,CAT III,600V

The backlight function will consume more battery power, the light will be automatically turned off in 15 seconds.

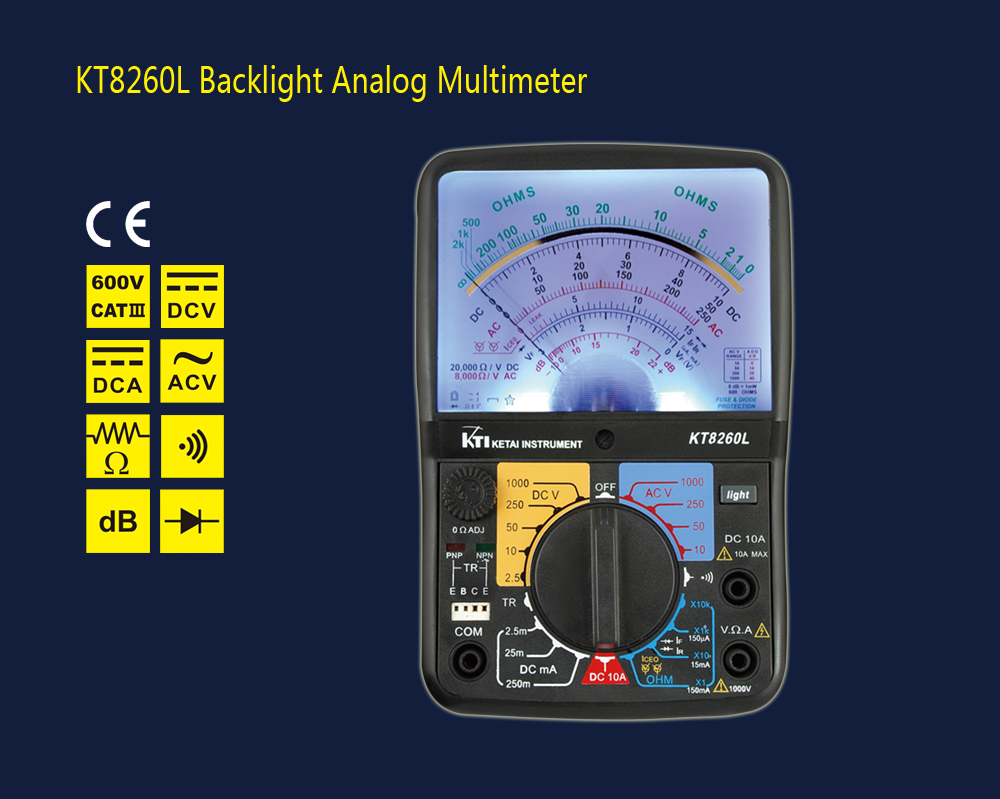

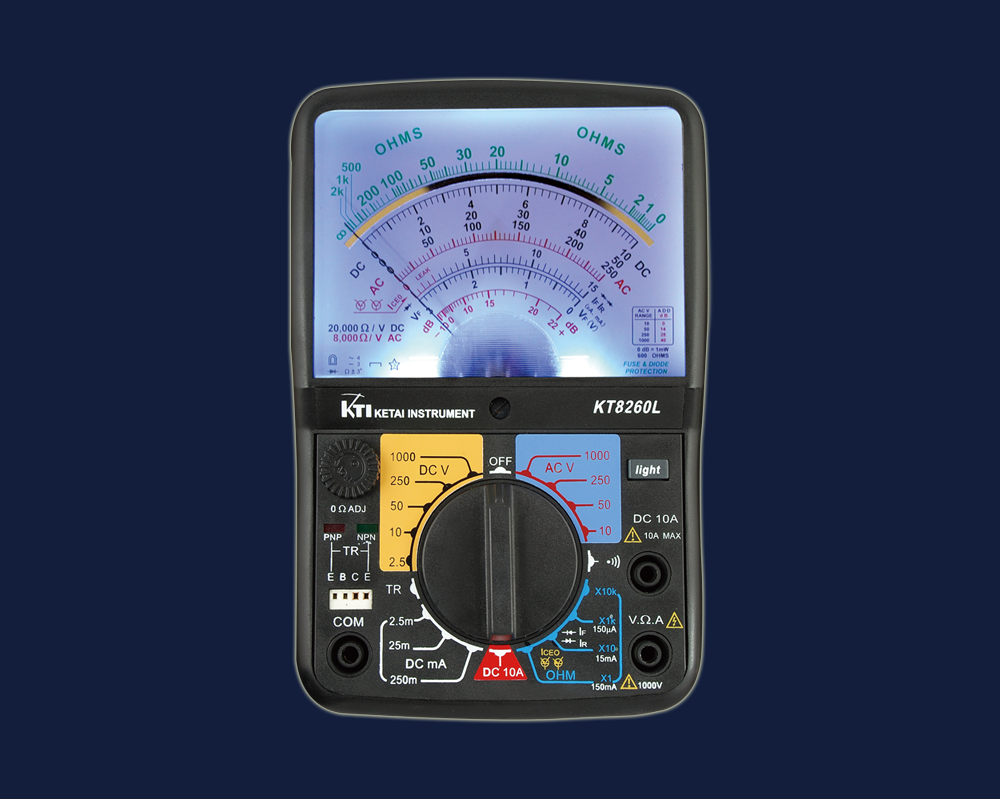

Large analog display, transistor test with backlight display.

User should be sure of understanding the full content of the user manual before using.
Always remember: make sure the range is in the right position in the first place, then check the test leads.
Read the SAFETY CAUTION,  Maintainance and repair in the user manual.
